Negative Pressure Quarantine Cabin

  • Three models: ARK-S2000-S; ARK-S2000-M; ARK-S2000-L
  • Ventilation purification system: Double disinfection, no filter element replacement, no waste disposal risk and cost.
  • Negative pressure ventilation system
  • Remote control via APP / PC client
  • Ventilation frequency: 25~30 times/hour
  • Disinfection: ultraviolet disinfection of the roof, remote intelligent control, timing and quantitative control, no need to enter the cabin switch.
  • Big data platform: it can collect and statistics cabin personnel’s body temperature, air temperature, humidity, negative pressure volume, the amount of air disinfection and purification, the number of air changes, air quality, the time and frequency of disinfection in the cabin, etc., and generate reports on demand.
  • The LCD module: temperature, humidity, negative pressure value, the amount of air disinfection and purification, the number of air changes, air quality, the time and frequency of disinfection in the cabin, etc.
  • Low noise design: <55db
  • Multi-function modules in the cabin can be selected according to the requirement.

Applications

  • Applicable to all kinds of ports, airports, railway stations, hospitals, large shopping malls, shopping centers, bars, museums, schools, subway stations, convention centers, living in apartments, office buildings, etc.

Technical Advantages

  • A. Negative pressure exhaust + triple air disinfection and purification. The negative pressure exhaust technology makes the air pressure in the cabin lower than the outside atmospheric pressure, and the air can only flow inside the cabin. At the same time, the high-pressure electrostatic field + ultra-high dose ultraviolet disinfection + activated carbon filter disinfection and purification technology guarantees the emission of chemical-pollution-free air after chemical treatment.
  • B. High ventilation efficiency more than 30 air changes per hour in the cabin
  • C. Outstanding disinfection and purification effect: The virus killing rate reached 99.9%, and the sterilization rate reached 99.9%.
  • D. Touch screen display, intelligent management, remote control, background big data statistical analysis. It can realize remote operation control and management on the APP / PC side, LCD screen display outside the cabin, data statistical analysis report, etc.

Certification&Inspection

  • Passed China CCC certification
  • The intelligent control system is certified by the national computer copyright registration
  • The company passed the ISO9001 quality management system certification of the British Royal Accreditation Agency (UKAS)
  • The company passed the ISO14001 environmental management system certification of the British Royal Accreditation Agency (UKAS)
  • Passed the EU CE certification

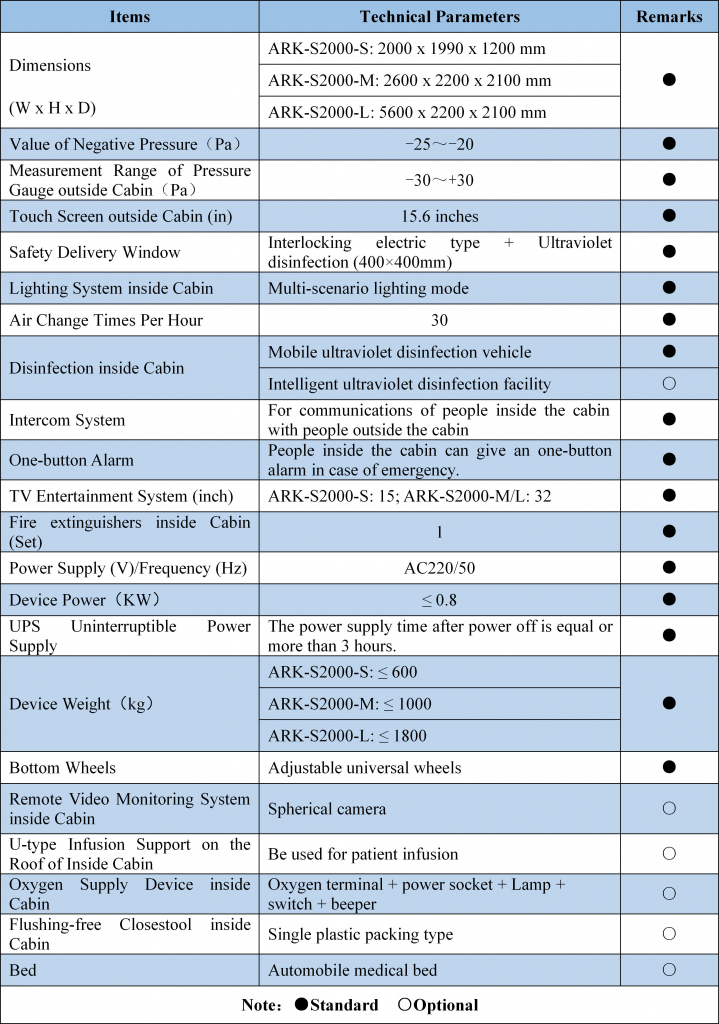

ModelARK-S2000-SARK-S2000-MARK-S2000-L
Dimensions(W x H x D)2000 x 1990 x 1200 mm2600 x 2100 x 2100 mm5600 x 2100 x 2100 mm
Control modeIntelligent Remote Control via APP/PC ClientIntelligent Remote Control via APP/PC ClientIntelligent Remote Control via APP/PC Client
Ventilation system

Negative pressure system

Triple purification system

Negative pressure system

Triple purification system

Negative pressure system

Triple purification system

Ventilation Rate25~30 times/hour25~30 times/hour25~30 times/hour
Outside LCDBody temperature, air temperature, humidity, negative pressure level, purification volume, ventilation rate and etc.Body temperature, air temperature, humidity, negative pressure level, purification volume, ventilation rate and etc.Body temperature, air temperature, humidity, negative pressure level, purification volume, ventilation rate and etc.
Big data platformThe platform can generate statistical report, including all parameters on outside LCDThe platform can generate statistical report, including all parameters on outside LCDThe platform can generate statistical report, including all parameters on outside LCD
Power<2kw<4kw<6kw
Noise level<55db<55db<55db
Voltage & FrequencyAC220V, 50HZ (AC110V, 60HZ and other power standard can be customized)AC220V, 50HZ (AC110V, 60HZ and other power standard can be customized)AC220V, 50HZ (AC110V, 60HZ and other power standard can be customized)
Customized moduleMini waterless toilet; toilet paper holderMini waterless toilet; toilet paper holderMini waterless toilet; toilet paper holder
Automatic hand sterilizerAutomatic hand sterilizerAutomatic hand sterilizer
Dynamic monitoring of body temperature by infrared thermal imagingDynamic monitoring of body temperature by infrared thermal imagingDynamic monitoring of body temperature by infrared thermal imaging
TV entertainment systemTV entertainment systemTV entertainment system
U-shaped infusion hangerU-shaped infusion hangerU-shaped infusion hanger
Medical bedMedical bedMedical bed
Oxygen interfaceOxygen interfaceOxygen interface
Multi-scene lighting systemMulti-scene lighting systemMulti-scene lighting system
Intercom SystemIntercom SystemIntercom System
One-click alarm system; Mini fire extinguishersOne-click alarm system; Mini fire extinguishersOne-click alarm system; Mini fire extinguishers
Foldable table; Commodity shelf; Dressing mirror,Foldable table; Commodity shelf; Dressing mirror,Foldable table; Commodity shelf; Dressing mirror,
Multi-scene color combinationMulti-scene color combinationMulti-scene color combination
ModelARK-S2000Others
Exhaust air purification systemHigh-voltage electrostatic field capture disinfection + ultraviolet disinfection, no need to replace the filter element, no waste disposal cost of bacteria-containing filter element, no risk of infection of bacteria during replacement treatment.Using filtering unit to filter and adsorb without disinfection and bacteria killing, the filter element needs to be replaced frequently. The bacteria-containing filter element is a hazardous waste, which needs to be disposed by a professional organization, and the treatment cost is high. There is a risk of infection of bacteria during replacement.
Control method Non-contact remote control, which can be controlled remotely via WeChat applet and PC Manual operation control
Ventilation frequency25~30 times/hour15~20 times/hour
Negative pressure cabin disinfectionUltraviolet disinfection of the roof, remote intelligent control, timing and quantitative control, no need to enter the cabin switch. Simple ultraviolet disinfection, personnel need to enter the switch unit in the cabin.
Data platform It can collect statistics of cabin personnel’s body temperature, cabin temperature, humidity, negative pressure value, cabin air disinfection and purification amount, air exchange frequency, air quality, cabin disinfection time and times, etc.N/A
LCD displayCabin temperature, humidity, negative pressure value, cabin air disinfection and purification volume, air exchange frequency, air quality, cabin disinfection time and times, etc.N/A
Noise level<55db<55db
Wall material&technologyThe honeycomb aluminum plate is composed of aluminum honeycomb core, bottom plate and panel bonded together with high-temperature aerospace adhesive, and the surface is coated with fluorocarbon paint.Steel plate, foam board / rock wool board
Customizable Multi-functional modules
  1. Mini toilet in the cabin, equipped with water-free flush toilet and toilet paper holder;
  2. Non-contact induction alcohol hand disinfection machine in the cabin;
  3. Infrared thermal imaging body temperature dynamic monitoring of cabin personnel;
  4. TV entertainment system in cabin;
  5. U infusion stand on the roof;
  6. In-cabin medical bed (national standard: manual / electric), European standard: electric);
  7. Oxygen transport equipment in the cabin, providing standard oxygen interface and power socket;
  8. Multi-scene lighting in the cabin: main light source mode (LED lights on the roof), night mode (warm floodlights around the roof), sleep mode (small night lights at the door and mini toilet) In-cabin intercom call system, in-cabin personnel and management center call intercom in real time;
  9. One-key emergency alarm in the cabin, warning light flashing outside the cabin, App and PC terminal send warning information;
  10. The cabin can be flipped over to a small table, which can be customized according to user’s need;
  11. Cabin racks can be customized according to user’s need;
  12. Dressing mirror can be customized according to user’s need;
  13. Professional cabin appearance design. Variety of scene color styles for option.
  14. Small fire extinguishers in the cabin;
  15. Single and multiple rooms are available.
Partial functions are available

Emergency Negative Pressure Isolation Cabin (ARK-S2000)

Applications

  • Applicable to all kinds of ports, airports, railway stations, hospitals, large shopping malls, shopping centers, bars, museums, schools, subway stations, convention centers, living in apartments, office buildings, etc.

Technical Advantages

  • A. Negative pressure exhaust + triple air disinfection and purification. The negative pressure exhaust technology makes the air pressure in the cabin lower than the outside atmospheric pressure, and the air can only flow inside the cabin. At the same time, the high-pressure electrostatic field + ultra-high dose ultraviolet disinfection + activated carbon filter disinfection and purification technology guarantees the emission of chemical-pollution-free air after chemical treatment.
  • B. High ventilation efficiency more than 30 air changes per hour in the cabin
  • C. Outstanding disinfection and purification effect: The virus killing rate reached 99.9%, and the sterilization rate reached 99.9%.
  • D. Touch screen display, intelligent management, remote control, background big data statistical analysis. It can realize remote operation control and management on the APP / PC side, LCD screen display outside the cabin, data statistical analysis report, etc.

Certification&Inspection

  • Passed Chinese ccc certification
  • The intelligent control system is certified by the national computer copyright registration
  • The company passed the ISO9001 quality management system certification of the British Royal Accreditation Agency (UKAS)
  • The company passed the ISO14001 environmental management system certification of the British Royal Accreditation Agency (UKAS)



ModelARK-S2000(Standard)
Pressure-30 ± 5Pa, the air outside the cabin enters through the fresh air outlet, and is discharged through the exhaust outlet through high-voltage static electricity + ultraviolet + activated carbon filter disinfection and purification, unidirectional airflow.
Control MethodRemote control / touch screen switch / mobile client, PC remote control
Screen DisplayDisplay negative pressure value, temperature, humidity, number of air changes, isolated body temperature, touch screen switch, alarm, isolation time, etc.
Purification&Exhau st SystemUsing high-voltage electrostatic field + ultra-high-dose ultraviolet disinfection + activated carbon filter disinfection and purification technology, the cabin is ventilated more than 30 times per hour, the virus kill rate reaches 99.99%, and the sterilization rate reaches 99.99%.
Ultraviolet lampUVC band ultraviolet light disinfection, the wavelength is 254nm
Power Supply&FrequenctAC220V,50HZ+UPS
Power Rate<1kw
Power-off working hours≥ 3hrs
Noise Level<55Db,Low noise design
DimensionStandard:2000mm×1200mm×1990m
Enhanced:2000mm×1500mm×2300mm
CUSTOMIZABLE
Net WeightStandard:490kg
Enhanced:650kg
WheelLockable universal wheels
CustomizationUpon clients’ request
ModelARK-S2000Others
Exhaust air purification systemHigh-voltage electrostatic field capture disinfection + ultraviolet disinfection, no need to replace the filter element, no waste disposal cost of bacteria-containing filter element, no risk of infection of bacteria during replacement treatment.Using filtering unit to filter and adsorb without disinfection and bacteria killing, the filter element needs to be replaced frequently. The bacteria-containing filter element is a hazardous waste, which needs to be disposed by a professional organization, and the treatment cost is high. There is a risk of infection of bacteria during replacement.
Control method Non-contact remote control, which can be controlled remotely via WeChat applet and PC Manual operation control
Ventilation frequency25-30/hour15-20/hour
Negative pressure cabin disinfectionUltraviolet disinfection of the roof, remote intelligent control, timing and quantitative control, no need to enter the cabin switch. Simple ultraviolet disinfection, personnel need to enter the switch unit in the cabin.
Data platform It can collect statistics of cabin personnel’s body temperature, cabin temperature, humidity, negative pressure value, cabin air disinfection and purification amount, air exchange frequency, air quality, cabin disinfection time and times, etc.N/A
LCD displayCabin temperature, humidity, negative pressure value, cabin air disinfection and purification volume, air exchange frequency, air quality, cabin disinfection time and times, etc.N/A
Noise level≤60dB≤65dB
Wall material&technologyThe honeycomb aluminum plate is composed of aluminum honeycomb core, bottom plate and panel bonded together with high-temperature aerospace adhesive, and the surface is coated with fluorocarbon paint.Steel plate, foam board / rock wool board
Customizable Multi-functional modules
  1. Mini toilet in the cabin, equipped with water-free flush toilet and toilet paper holder;
  2. Non-contact induction alcohol hand disinfection machine in the cabin;
  3. Infrared thermal imaging body temperature dynamic monitoring of cabin personnel;
  4. TV entertainment system in cabin;
  5. U infusion stand on the roof;
  6. In-cabin medical bed (national standard: manual / electric), European standard: electric);
  7. Oxygen transport equipment in the cabin, providing standard oxygen interface and power socket;
  8. Multi-scene lighting in the cabin: main light source mode (LED lights on the roof), night mode (warm floodlights around the roof), sleep mode (small night lights at the door and mini toilet) In-cabin intercom call system, in-cabin personnel and management center call intercom in real time;
  9. One-key emergency alarm in the cabin, warning light flashing outside the cabin, App and PC terminal send warning information;
  10. The cabin can be flipped over to a small table, which can be customized according to user needs;
  11. Cabin racks can be customized according to user needs;
  12. Underwear hat mirror can be customized according to user needs;
  13. The appearance of the cabin is designed by a famous designer, with a variety of scene color styles, users can choose according to their needs;
  14. Small fire extinguishers in the cabin;
  15. Single and multiple rooms are available.
Partial functions are available

Emergency Negative Pressure Isolation Cabin (ARK-S2000)
